In Stock

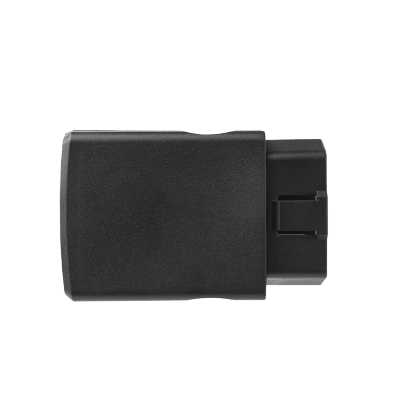

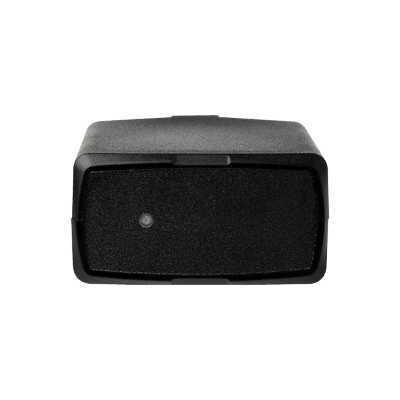

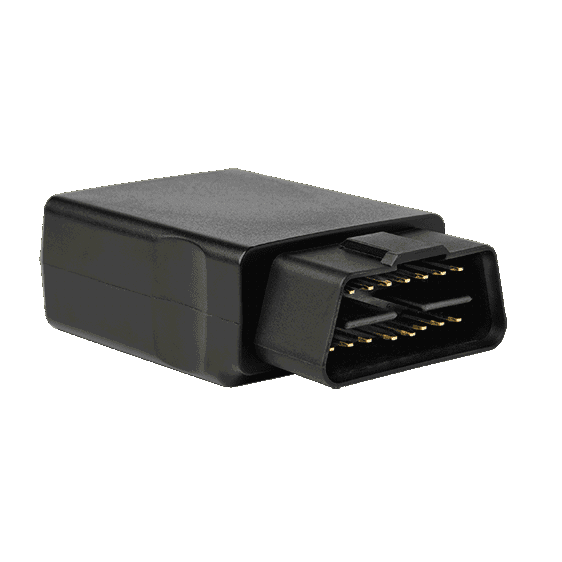

OBD Tracker
Compact and affordable vehicle tracking device featuring simple plug and play installation for fleet management, driver safety and behaviour monitoring, theft recovery, and more
High-precision tracking device plugs into existing OBDII ports of vehicles
Speeding, harsh braking and cornering, accident and rollover detection
Electronic Odometer Readings
Accelerometer for Smart Movement Based Tracking
Multiple Installation Options (traditional plug and play, splitter installation)
Cellular 2G or 4G LTE-M / NB-IoT
Spec
SIM Size & Access
:
Internal Nano 4FF SIM
Dimensions
:
71 x 46 x 24 mm (2.8 x 1.81 x 0.94″)
Installation
:
OBDII standard connector draws power from the OBDII port to operate
Smarts
Accident & Rollover Detection
:
Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicle or equipment. Second-by-second GPS data is saved on the device’s flash memory, with a ca- pacity of approximately 2 hours of data. In the event of an accident, a subset of the data (60 seconds before / 10 seconds after) is uploaded to the server automatically (if configured) or can be requested manually for a detailed reconstruction of the incident.
Driver Safety & Behavior
:
Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles
Geofence Alerts
:
The server can use device location to create geofences and alerts if an asset enters or leaves desig- nated locations
Preventative Maintenance
:
Set reminders based on distance traveled and run hours to reduce maintenance and repair costs
Real-Time Tracking
:
Device remains continuously connected while on the move for real-time asset tracking
Run Hour Monitoring
:
Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization
Tamper/Removal Detection
:
Critical ‘unplugged/power loss’ alerts to notify users of device removal, tampering, unauthorized trips, or theft
Theft Recovery
:
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
Backup Battery
:
200mAh LiPo internal backup battery pack
